Amiga 500

"Alien Technology Near Your Neighbor"

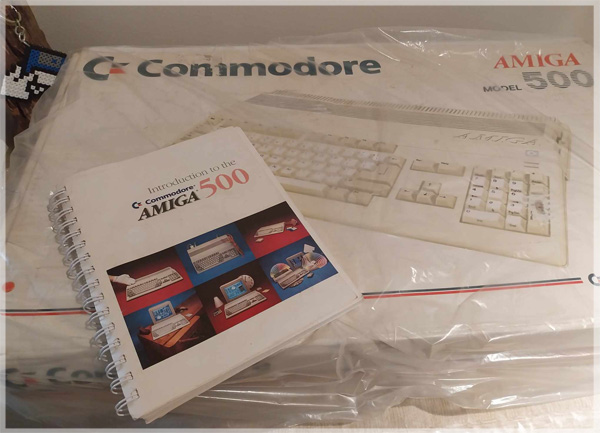

Released in April 1987, the Amiga 500 is a legendary multimedia home computer manufactured by Commodore until 1992. The A500 offered the same CPU and chipset as the original Amiga 1000, however, it had a considerably lower price tag.

• Initially sold for $699 ($1,780 in today’s money)
• A500 was the most successful Amiga model ever sold (especially successful in Europe)
• The Amiga series of computers were used by artists all over the world

THE AMIGA AT A GLANCE

• AmigaOS version 1.2/1.3
• Mouse-driven graphical user interface (GUI)
• Preemptive multitasking
• 68000 CPU running at 7.16 MHz (NTSC) or 7.09 MHz (PAL)
• 512 KB of RAM, easily upgradable to 1 MB
• OCS graphics / 12-bit color palette (4,096 colors)
• Built-in blitter
• Hardware graphics (sprites & scrolling)
• PCM stereo sound (4 channels)
• 880K 3+1⁄2-inch floppy disk drive
• Compatible with the Amiga 1000

Colors & Graphic Modes

Amiga 500 offers OCS graphics with up to 4,096 (HAM) colors on-screen. The Amiga has the unique ability to display multiple resolution modes at the same time, by splitting the screen vertically.

• Pal Modes
• Up to 32 colors on screen (without tricks)
• Blitter, hardware sprites, and hardware scrolling
• Planar graphics, with up to 5 bitplanes
• A500 graphics can be upgraded to ECS (Amiga Enhanced Chip Set)
• 320×256, 640×256, 640×512 (interlaced), and up to 704×576 (overscan)

NTSC modes

• 320×200, 640×200, 640×400 (interlaced), and up to 704×484 (overscan)

Special Modes

• Extra HalfBrite (EHB) mode
• Hold-And-Modify (HAM) mode, which allows all 4,096 colors on the screen

Sound Capabilities

The sound capabilities of the Amiga were far ahead of its time as it offered four hardware-mixed audio channels (2 to the left and 2 to the right).

• 2 stereo channels (4 × 8-bit PCM)
• 28 kHz DMA sampling rate, and up to 57 kHz
• The hardware channels have independent volumes (65 levels)
• Software controllable low-pass audio filter

I/O Ports

• 2 DE-9 ports for mouse and joystick
• RGB video out (DB-23M)
• Mono video out (RCA)
• Audio out (2 × RCA)
• RS-232C compatible serial port
• Centronics style parallel port (DB-25F)
• 2nd disk drive (DB23F), and up to 3 extra floppy disk drives
• Trapdoor expansion slot (inside the machine)
• Side expansion port (Zorro)

Monitors

The Amiga 500 can be connected to TVs, RGB monitors, 15-kHz VGA monitors, or even modern HDMI monitors with the right video upscaling hardware.

• Commodore monitors (1084, etc.) and other RGB monitors (Philips CM 8833, etc.)
• 15 kHz VGA monitors with RGB to VGA adapter (monitors such as BenQ)
• TVs via modulator or a SCART cable (RGB to SCART)
• Modern VGA/HDMI monitors via video upscaling hardware

A500 Upgrades

A Zorro expansion (86 pins) on the left of the Amiga 500, can be used to accommodate peripherals such as a hard disk or a CD-ROM drive.

An inside expansion slot is also commonly used for a memory upgrade.

Memory Upgrades

• 0.5 MB of extra RAM +RTC via the trapdoor expansion slot (easy upgrade)
• All A500 can be upgraded to 2.5 MB of RAM (by fitting the 8372B Agnus chip)
• The A500s can have up to 138 MB of RAM by using expansion techniques {2 MB of Chip RAM + 8 MB of 16-bit Fast RAM + 128 MB of 32-bit Fast RAM}

CPU upgrades

• The CPU can directly be upgraded to a 68010
• The CPU can also be upgraded to 68020, 68030, or 68040 via a CPU socket adapter or the side expansion slot
• Vampire 500 v2+ (powerful but expensive accelerator)
• Powerful and cheap accelerators based on the Raspberry Pi

Storage Upgrades

• A hard disk can be accommodated on the left Zorro slot (for example, the old GVP hard disks)
• The A570 CD-ROM was available by Commodore
• Up to 3 extra floppy disk drives (external DD)
• Modern upgrades include CF/SD hard disks
• A Gotek USB drive can replace the internal A500 floppy disk drive

Upgrading the Graphics

• The A500 can be upgraded to the Enhanced Chip Set (ECS)
• HDMI output upgrade

Related Models: A500+ (Amiga 500 Plus)

Released in November 1991, A500+ is an enhanced version of the classic Amiga 500, A500+ offered a new operating system (2.04) and improved ECS graphics in the same case.

• Sold for £399 (Cartoon Classics pack)
• Amiga 500+ was discontinued in mid-1992, and replaced by the Amiga 600.
• 1 MB of RAM
• Operating system 2.04
• ECS (enhanced) graphics, including a new version of Agnus and Denise chips
• Built-in Real Time Clock (the battery leaks)

A500+ Incompatibilities

Due to the new Kickstart, A500+ users face many incompatibilities with classic Amiga software. This issue can be addressed by:

• A Kickstart switching board, that includes both 1.3 and 2.04 ROMS
• Relokick is a software that loads the Kickstart 1.3 ROM image into memory and directly boots to 1.3 (offers decent compatibility)
