iMac G3: Steve Jobs’ Comeback

The iMac G3 was Apple’s first major product after Steve Jobs returned to the company. It was sold from 1998 to 2003 and designed as an affordable web-ready computer for everyday users. The G3 replaced older tech, such as floppy disk drives and serial ports, with a CD-ROM drive and USB ports.

  • Launch price: $1,299 (August 1998)

  • Original colors: Bondi Blue, Grape, Tangerine, Blueberry, Lime, Strawberry

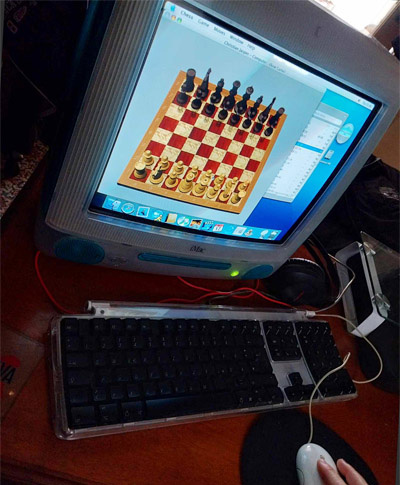

iMac G3 from my collection



iMAC G3 AT A GLANCE

The initial version of the iMac featured:

  • Display: 15-inch CRT screen
  • Processor: PowerPC G3 at 233 MHz
  • Cache: 512 KB L2 cache
  • Memory: 32 MB RAM
  • Graphics: 2 MB Video RAM with ATI Rage graphics
  • Storage: 4 GB hard drive
  • CD Drive: 24x tray-loading CD-ROM
  • Ports: 2 USB ports
  • Networking: Built-in Ethernet and modem
  • Sound: Stereo speakers
  • Operating System: Mac OS 8.1 (later upgraded to 8.5)
  • Size & Weight: 401 x 386 x 447 mm, 18.14 kg



Display & Graphics

Standard Configuration

  • Screen resolutions: 640x480, 800x600, 1024x768
  • Color depth: Millions of colors
  • Early models had 2 MB of video RAM
  • Later models had up to 6 MB and used ATI Rage Pro Turbo graphics

iMac G3 Manuals and Installation CDs...



Audio Capabilities

  • Stereo speakers built-in
  • Headphone jack
  • Audio input and output ports



I/O Ports

  • 2 USB 1.1 ports
  • 56k Modem, built-in 10/100 BASE-T Ethernet
  • Microphone
  • Audio line-in and line-out on the front, plus headphone port on the right
  • 2× FireWire (some models only)
  • VGA out on the back (later models only)



iMac Generations & Models

  • First Generation iMacs (1998–1999)



iMac Model

iMac 233 MHz iMac 233 MHz iMac 266 MHz iMac 333 MHz
□ COLORS
  • Bondi Blue
  • Grape
  • Tangerine
  • Blueberry
  • Lime, and
  • Strawberry
□ RELEASED August 15, 1998 October 26, 1998 January 5, 1999 April 15, 1999
□ CPU

233 MHz G3

  • 32 KB L1 Cache
  • 512 KB L2 cache

266 MHz G3

  • 32 KB L1 Cache
  • 512 KB L2 cache

333 MHz G3

  • 32 KB L1 Cache
  • 512 KB L2 cache
□ MEMORY
        • 32 MB–256 MB
        • PC100
□ GRAPHICS
  • ATI Rage IIc
  • 2 MB of SGRAM
  • ATI Rage Pro Turbo
  • 6 MB of SGRAM
□ HD DRIVE 4 GB 6 GB
□ OPTICAL DRIVE

24X tray-loading CD-ROM drive

□ MACOS VERSION Mac OS 8.1 / Mac OS 8.5 Mac OS 8.5.1



  • Second Generation iMacs (1999–2001)



iMac Model

iMac (Slot Loading) iMac (Summer 2000) iMac (Early 2001) iMac (Summer 2001)



□ RELEASED

October 5, 1999 July 19, 2000 February 22, 2001 July 18, 2001
□ COLORS
  • Grape
  • Blueberry
  • Tangerine
  • Lime
  • Strawberry
  • Graphite
  • Indigo
  • Ruby
  • Sage
  • Graphite
  • Snow
  • Indigo
  • Graphite,
  • Blue Dalmatian
  • Flower Power
  • Indigo
  • Graphite
  • Snow



□ CPU



  • 350 or 400 MHz G3
  • 512 KB of L2 Cache
  • 350, 400, 450, or 500 MHz G3
  • 512 KB of L2 Cache
  • 400, 500, or 600 MHz G3
  • 512 KB or 256 KB of L2 Cache
  • 500, 600, or 700 MHz G3
  • 256 KB of L2 Cache
□ MEMORY 64 MB–512 MB 64 MB–1 GB 64 MB–1 GB 128 MB–1 GB
□ GRAPHICS 8 MB ATI Rage 128 8 MB ATI Rage 128 Pro 8 MB ATI Rage 128 Pro
16 MB ATI Rage 128 Ultra
16 MB ATI Rage 128 Ultra
□ HD DRIVE
  • 6 GB
  • 10 GB
  • 13 GB
  • 7 GB
  • 10 GB
  • 20 GB
  • 30 GB
  • 10 GB
  • 20 GB
  • 40 GB
  • 20 GB
  • 40 GB
  • 60 GB
□ OPTICAL DRIVE
  • CD-ROM
  • DVD-ROM
  • CD-RW
□ MACOS VERSION Mac OS 8.6 Mac OS 9.0.4 Mac OS 9.1
  • Mac OS 9.1
  • Mac OS X 10.0.4

(source: Wikipedia)
